Manufacturer illustrations. Final package contents depend on the version ordered.
HOME CHARGING · CDZ22SV01-EU
Naveitech 22kW EV Home Charging Box | 380V 32A 3-Phase Type 2 Smart Wallbox Charger with Tuya WiFi, App & RFID Control (IP65)

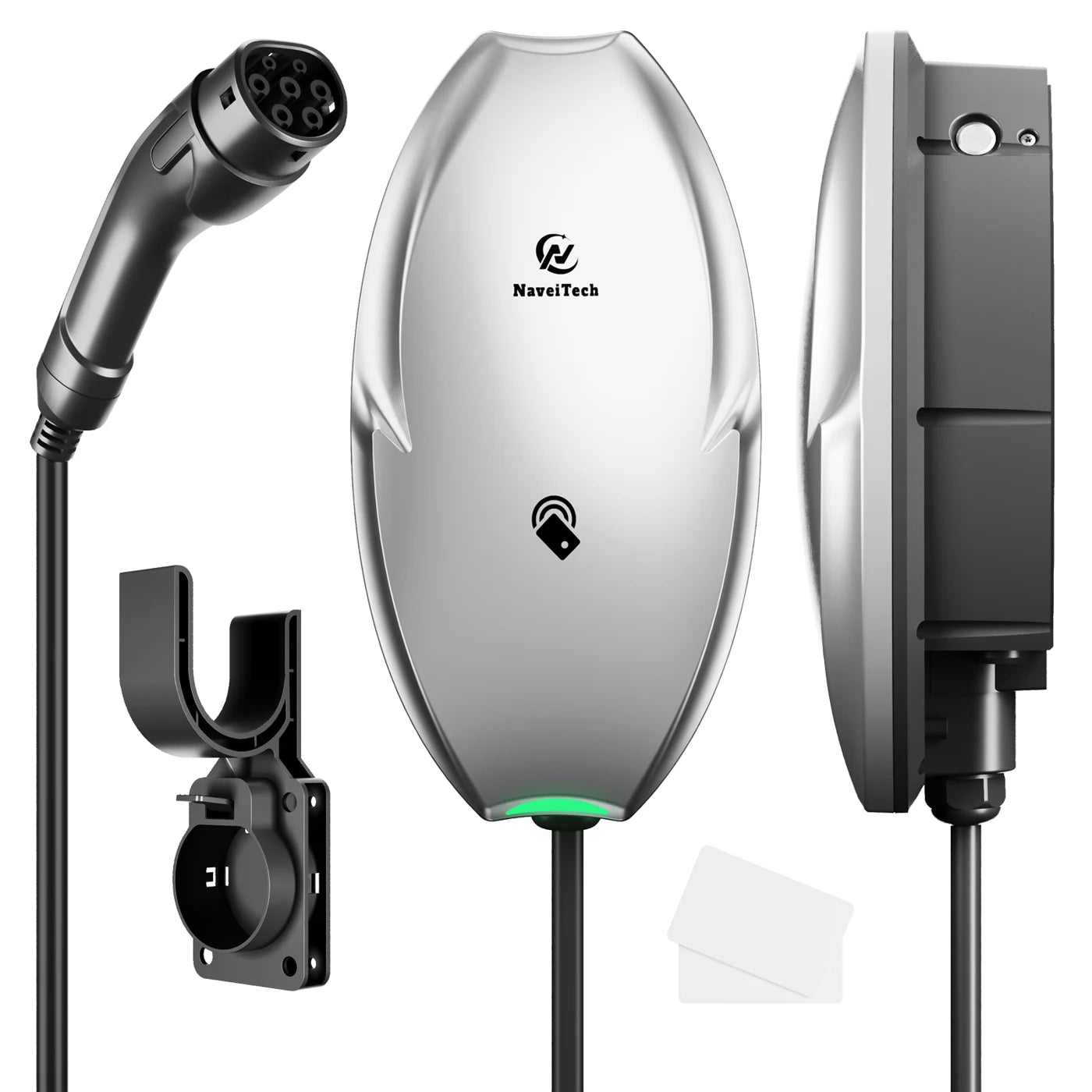

NaveiTech 22 kW AC wallbox for wall mounting, with app and RFID control.
- Up to 22 kW with a suitable three-phase installation*
- App remote control and RFID as described in the manual
- IP65 · ABS+PC enclosure
- Dynamic load balancing with an additional CT*
$531.09 USD
Not sure? Open the selection guide →Taxes included.
* Actual power depends on your vehicle and installation. Confirm the CT version and package contents in advance.
For everyday chargingControl starts
Control starts
with a clear overview.
Use the app or RFID to operate the charging point. The LED shows its operating status. The manual also describes DLB with a current transformer.
Confirm the communication options and features of your ordered version before purchase.
Ask a technical question ↗
The details make the difference.
| Model | CDZ22SV01-EU |
|---|---|
| Maximum AC power / current | 22 kW / 32 A, three-phase (product catalogue / EMC report) |
| Dimensions | 380 × 200 × 130 mm (manual p. 1) |
| Operation | RFID / app; confirm the specific communication version |
| Protection rating / enclosure | IP65 / ABS+PC as stated in the manual |
| Operating temperature | −30 °C to +50 °C as stated in the manual |
| Load management | DLB with an additional CT; confirm package contents |
| Installation | By qualified professionals |
| Billing / integration | No MID, German calibration-law or PV surplus functionality assured |
Data applies to the version shown. Confirm voltage, cable length, protection design, protocol and package contents for each SKU before sales release.
Well prepared
What is included?

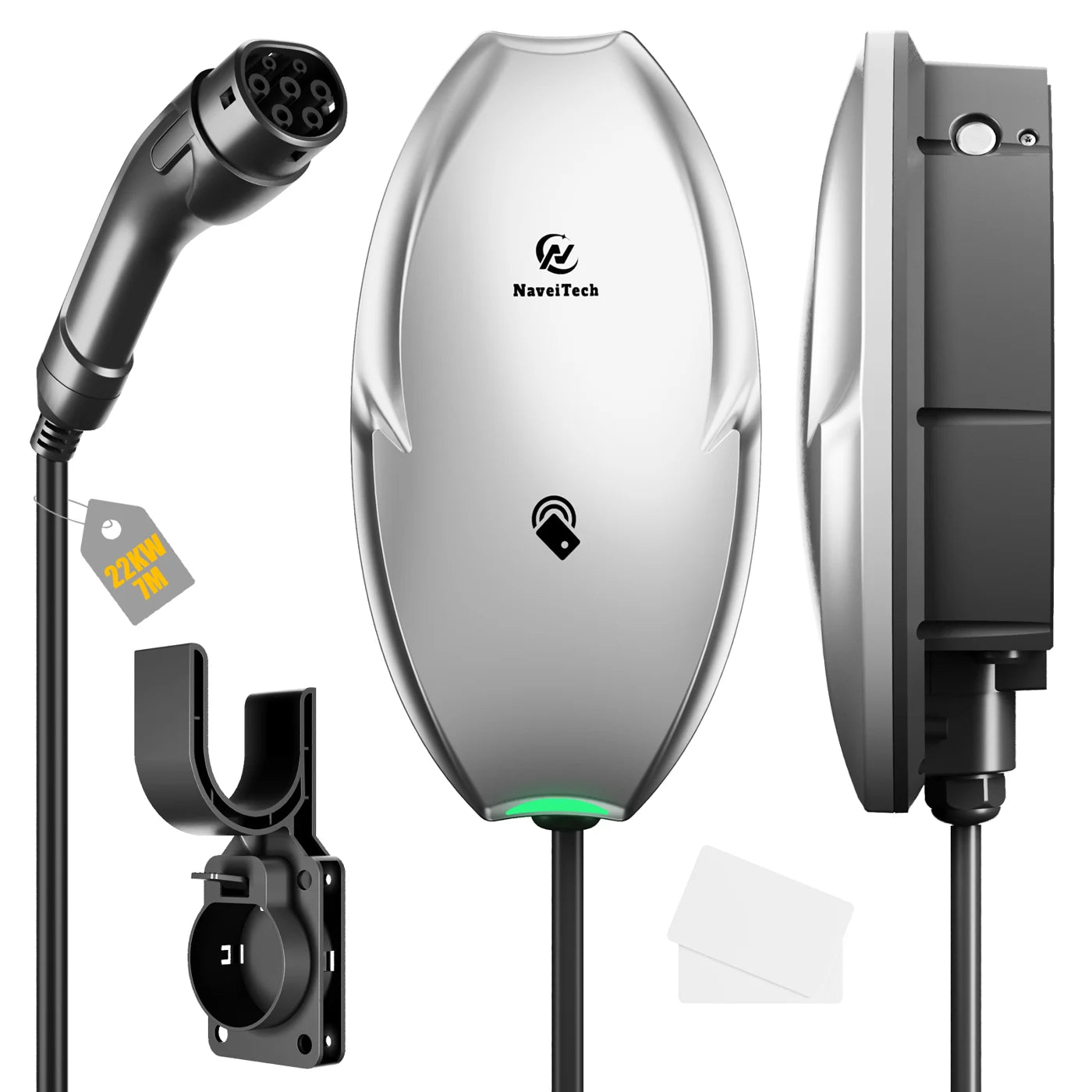

The manual lists one AC charging station, two RFID cards, a cable holder and mounting hardware.
Additional electrical installation and a DLB CT are not assured as included. Confirm the cable length and final package contents for the version ordered.
Request the manual ↗Your questions. Clear answers.
Will my car actually charge at 22 kW?
Actual charging power depends on the vehicle's AC onboard charger, the electrical supply and the approved installation. The wallbox rating alone does not determine charging speed.
Can I connect the wallbox myself?
The manual requires installation by qualified professionals. Have the electrical supply, protection design and local requirements checked before purchase.
What do I need for dynamic load balancing?
The manual describes DLB with an additional current transformer (CT). Confirm availability, package contents and suitability for your installation and ordered version.
Is the device suitable for consumption-based billing?
MID or German calibration-law compliance is not assured for the version shown. Check your billing requirements and the appropriate device version in advance.
Are PV surplus charging and battery integration included?
Verified PV surplus control or battery integration is not assured for this version. Describe your existing devices in an enquiry so integration can be checked.
