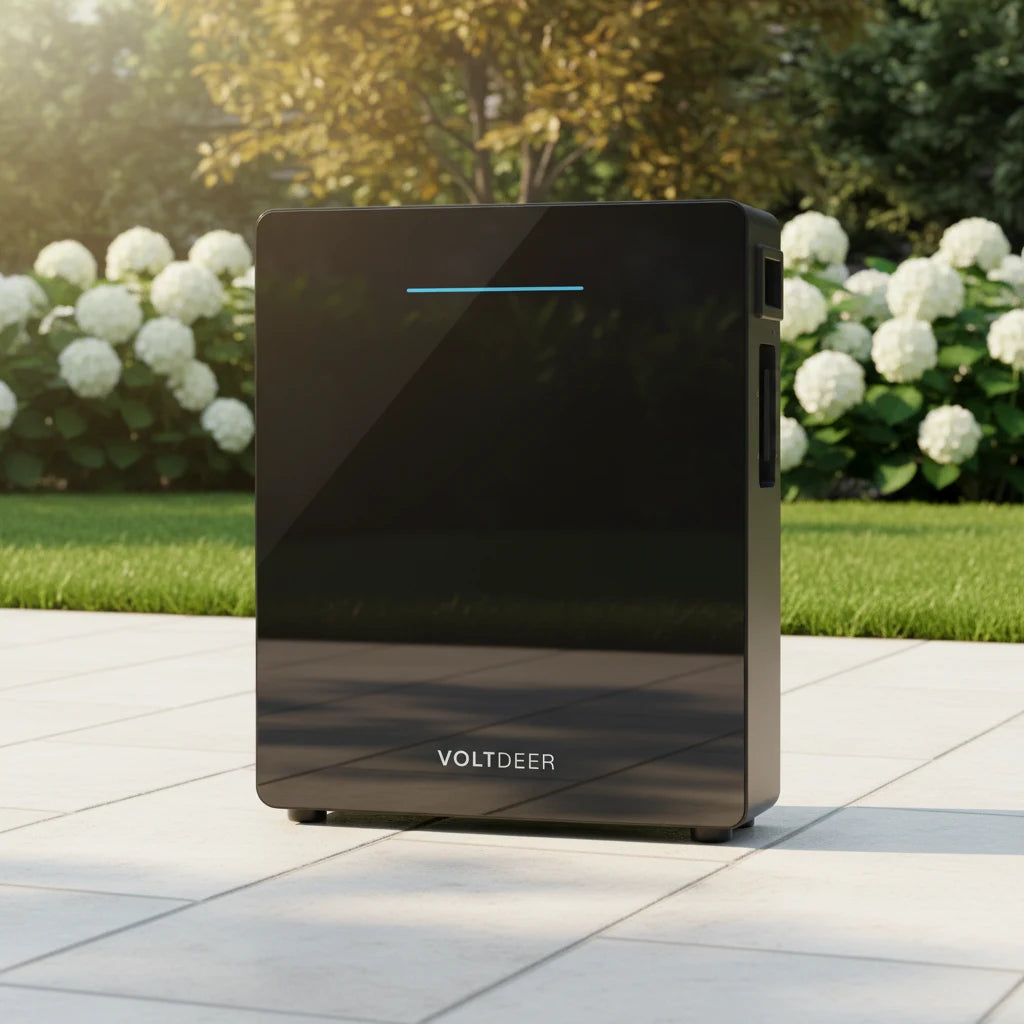

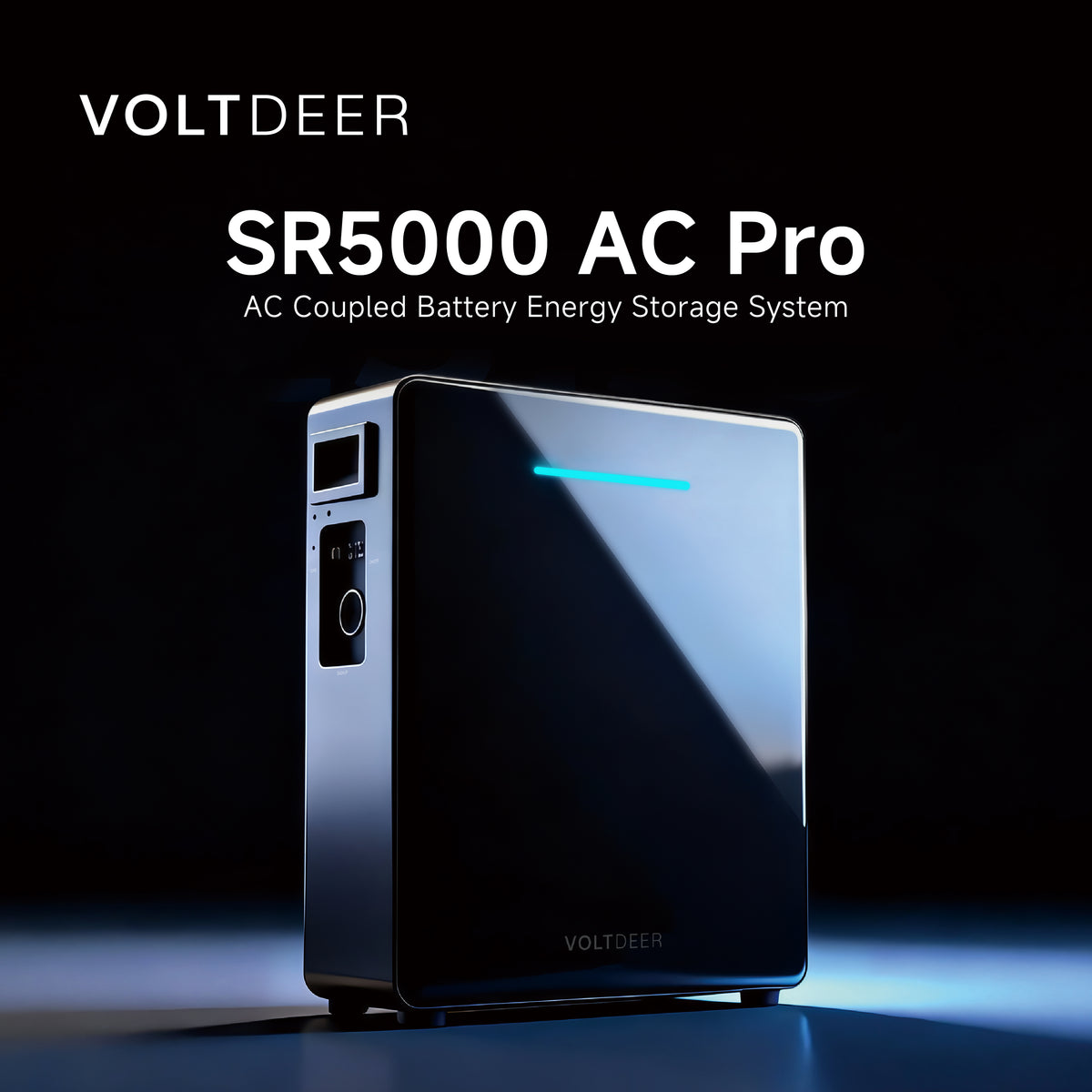

SR5000 AC Pro · 5.12 kWh
Voltdeer SR5000 AC Pro | 2.5kW, 5.12kWh | Pylontech LiFePO₄ met noodstroom
SR5000 AC Pro is an AC-coupled LiFePO₄ battery with 5.12 kWh nominal energy. It can complement suitable existing solar systems through a verified AC configuration.
- 5.12 kWh · Nominal capacity
- AC coupled · For a verified system connection
- LiFePO₄ · IP65
Sales preparation in progress. Please enquire about the version, availability and delivery area.
Enquire about this productGrid export and the separate AC outlet are different operating modes. Confirm the right settings, installation and suitability for your location.
BALCONY · SOLAR · STORAGE
Add storage. Match the system.
AC Pro is listed separately from SR5000. Its new brochure describes AC coupling with existing PV / microinverter systems. Confirm device compatibility, metering and control for your system.
Ask about compatibility ↗Specifications
| Model | SR5000 AC Pro · AC-coupled storage |
|---|---|
| Battery | 5,120 Wh · 51.2 V · 100 Ah · LiFePO₄ |
| System coupling | AC coupled; no direct DC PV input or MPPT specification is assured for this item |
| AC mains input | 2,500 W · 230 V AC · 50 Hz stated in the new brochure |
| Grid-connected operation | 800 W default / 2,500 W technical maximum stated in the brochure; not a general connection approval |
| Separate AC outlet | 2,500 W · 230 V AC · 50 Hz stated in the new brochure |
| Dimensions / weight | 503 × 176 × 615 mm · 55 ± 2 kg |
| Protection rating | IP65 stated in the new brochure; observe installation conditions |
| Communication | Wi-Fi · Bluetooth · RS485 stated in the brochure; confirm firmware and device compatibility |
Source: SR5000 AC Pro product brochure, PDF page 11. The supplied older SR2000/SR5000 manual does not establish the Pro version.
Agree the details before ordering.
Confirm the main unit, cables, mounting hardware, meters and additional batteries for each sales SKU. The illustrations are not a binding packing list.
Request AC Pro installation manual ↗Questions & answers
Is AC Pro different from SR5000?
Yes. This item has a separate template and specifications. The AC Pro brochure lists different dimensions and power ratings; older SR5000 DC PV inputs are not carried over.
Can the maximum power be used everywhere?
The technical maximum in the brochure does not establish suitability for connection. Check grid operation, the separate outlet, settings and local suitability separately.
Are savings above €800 or a 10 ms UPS transfer guaranteed?
The brochure advertises these values, but calculation conditions and separate test evidence are not provided for this page. No fixed savings or transfer-time promise is made.
Are microinverters, smart meters and VPP already compatible?
The brochure describes these possibilities. It does not establish compatibility with every device, backend or market. Provide the exact models and intended functions for assessment.
Are expansions and accessories included?
The brochure describes expansion options. Confirm approved extra devices, maximum configuration, cables, protection design and package contents for the actual offer.
