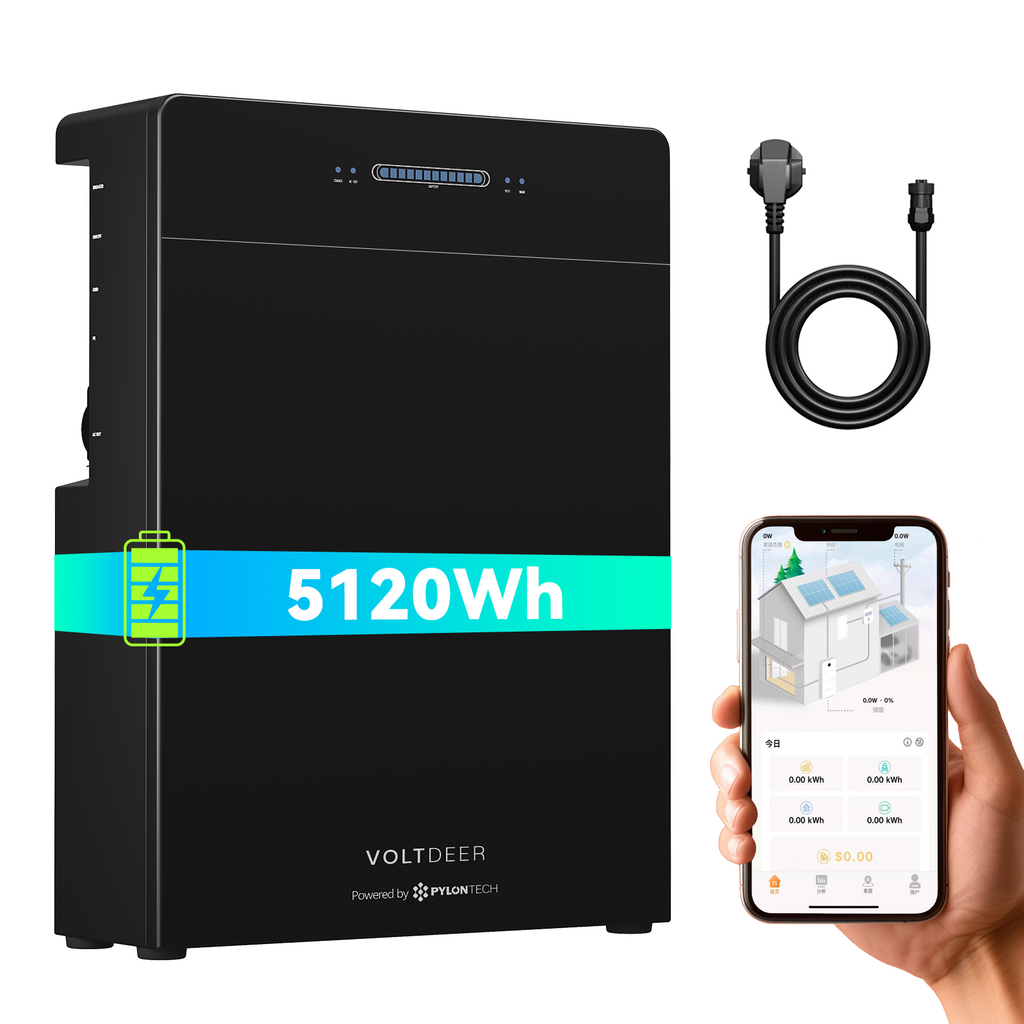

Name: Voltdeer SR5000 5.12kWh Balcony Solar Storage System | Powered by PYLONTECH 2000W PV & 2400W AC All-in-One Power Station (IP65)
Brand: naweitech
Price: 1806.87 USD
Availability: InStock

Voltdeer SR5000 5.12kWh Balcony Solar Storage System | Powered by PYLONTECH 2000W PV & 2400W AC All-in-One Power Station (IP65)

AC-COUPLED HOME BATTERY

Voltdeer SR5000 5.12kWh Balcony Solar Storage System | Powered by PYLONTECH 2000W PV & 2400W AC All-in-One Power Station (IP65)

The Voltdeer SR5000 AC Pro is a smart plug-and-play 5 kWh home battery featuring proven Pylontech LiFePO₄ technology, built-in UPS, AI-powered energy scheduling, and expandability up to 30 kWh — the all-in-one solution to get the most out of solar power and achieve energy independence.

Add 5.12 kWh of LiFePO₄ storage to a suitable existing solar installation. Keep more of your daytime generation for later, with a system configuration matched to your home.

5.12 kWh

Nominal storage

AC coupled

For existing solar systems

LiFePO₄

Pylontech Battery chemistry

2,500 W

AC charge and discharge power

IP65

indoor or outdoor installation

5-year

warranty

Availability and delivery options are confirmed for your destination.

Check my setup ↗ Ask about availability

Description Includes Specs Downloads FAQ Reviews

Your solar energy. A little later.

Solar generation and household demand do not always happen at the same time. Storage can help bridge that gap when the installation, metering and controls are correctly matched.

01

Keep the solar inverter you already have?

AC coupling is a route to adding storage alongside existing solar equipment. We check the proposed setup before confirming compatibility.

02

Plan charging around your day.

Available schedules and smart modes depend on the supplied firmware, metering and regional service. Dynamic tariff and VPP support are confirmed separately.

03

Backup for selected essentials.

The brochure lists a separate AC output rated at up to 2,500 W. Confirm starting loads, the connection and available energy before relying on it.

Understand the energy path.

Solar panels feed your existing solar inverter. The AC Pro stores energy through the AC side of a compatible installation. It has no direct DC solar input. This is a functional illustration, not a wiring diagram.

Solar panels

Existing solar inverter

Household loads

↔ SR5000 AC Pro

→ Electricity grid

Know the limits before you choose.

5.12 kWh is nominal battery energy, not guaranteed AC energy delivered. The grid-connected default, technical maximum and separate backup output are different ratings. Zero export is not a promise of zero grid exchange at every instant.

Keep Your Batteries Ready for Outages

A charge controller is required for proper setup.

Robust Structure for Consistent Panel Output

Sturdy, rust-resistant kickstands allow maximum power generation, backed by an industry-leading warranty and made with the toughest materials.

Instant Backup Power

Pairs seamlessly with a portable power station for plug-and-play emergency backup power.

Why Choose Naveitech

Redefining excellence in solar solutions.

Package Includes

What's in the Box?

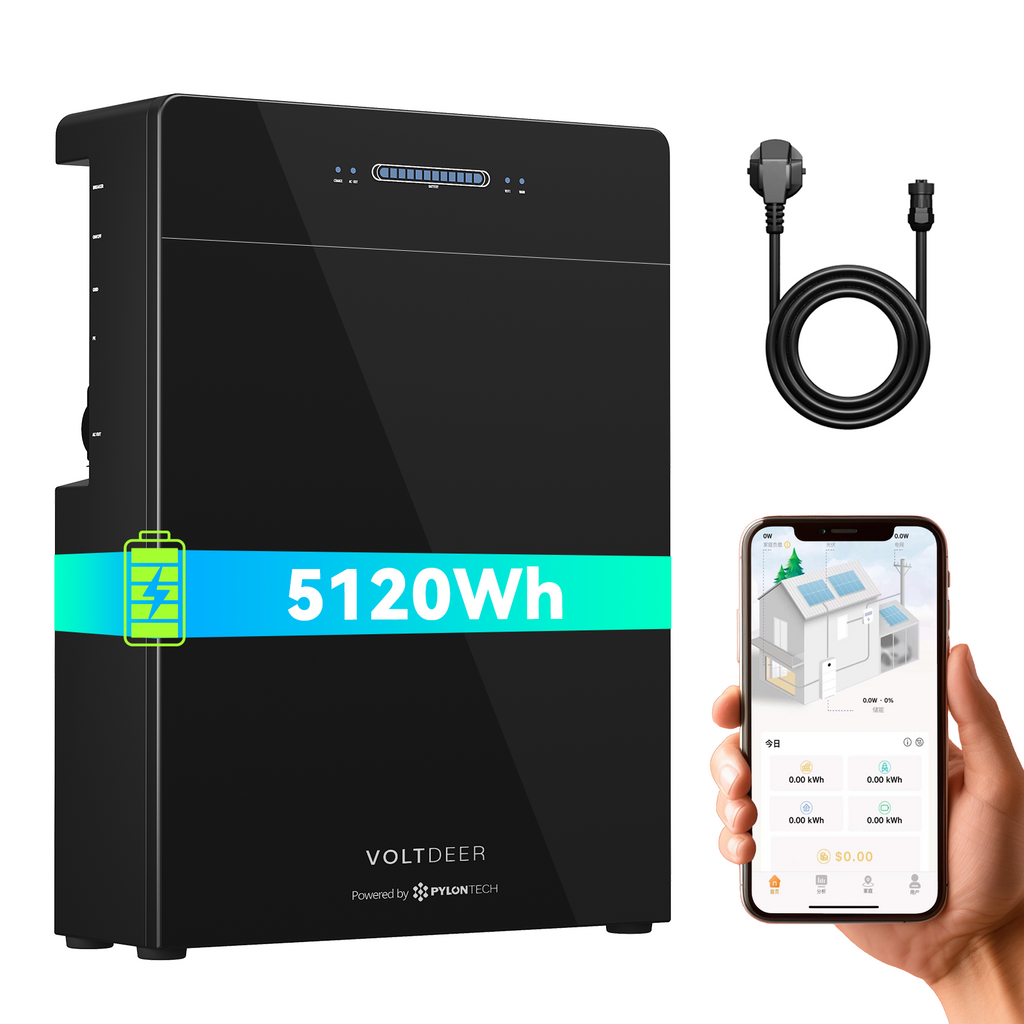

Voltdeer SR5000 5.12kWh All-in-One Solar Storage System (Powered by PYLONTECH)

x1

Heavy-Duty Schuko AC Grid Power Connection Cable

x1

External Wi-Fi Antenna

x1

Wall-Mounting Bracket & Expansion Anchor Kit

x1

User Manual

x1

Specs

Technical Specifications

Model	Voltdeer SR5000
Battery Technology	Powered by PYLONTECH LiFePO4 Cells
Rated Battery Capacity	5120Wh (51.2V / 100Ah)

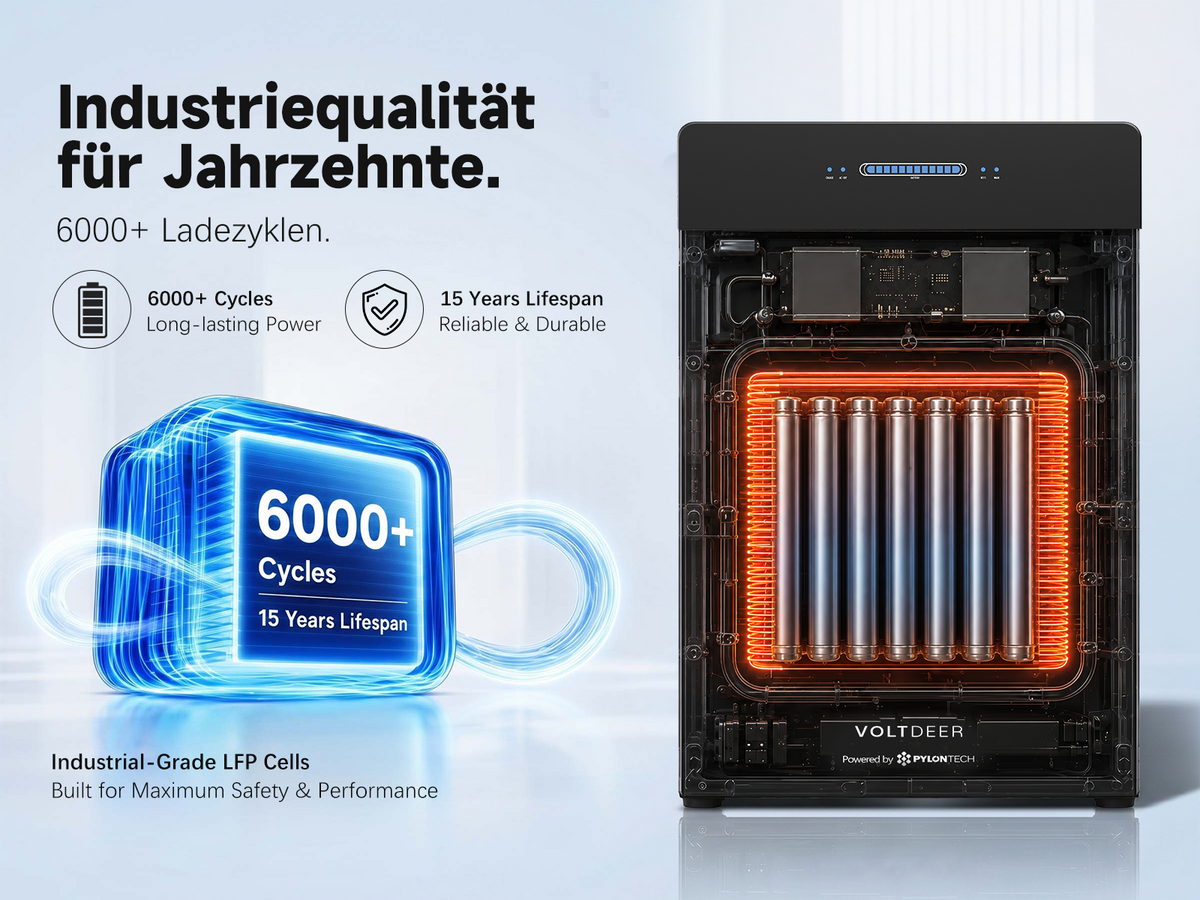

Cycle Life	6000+ Cycles (≥15 Years Lifespan)

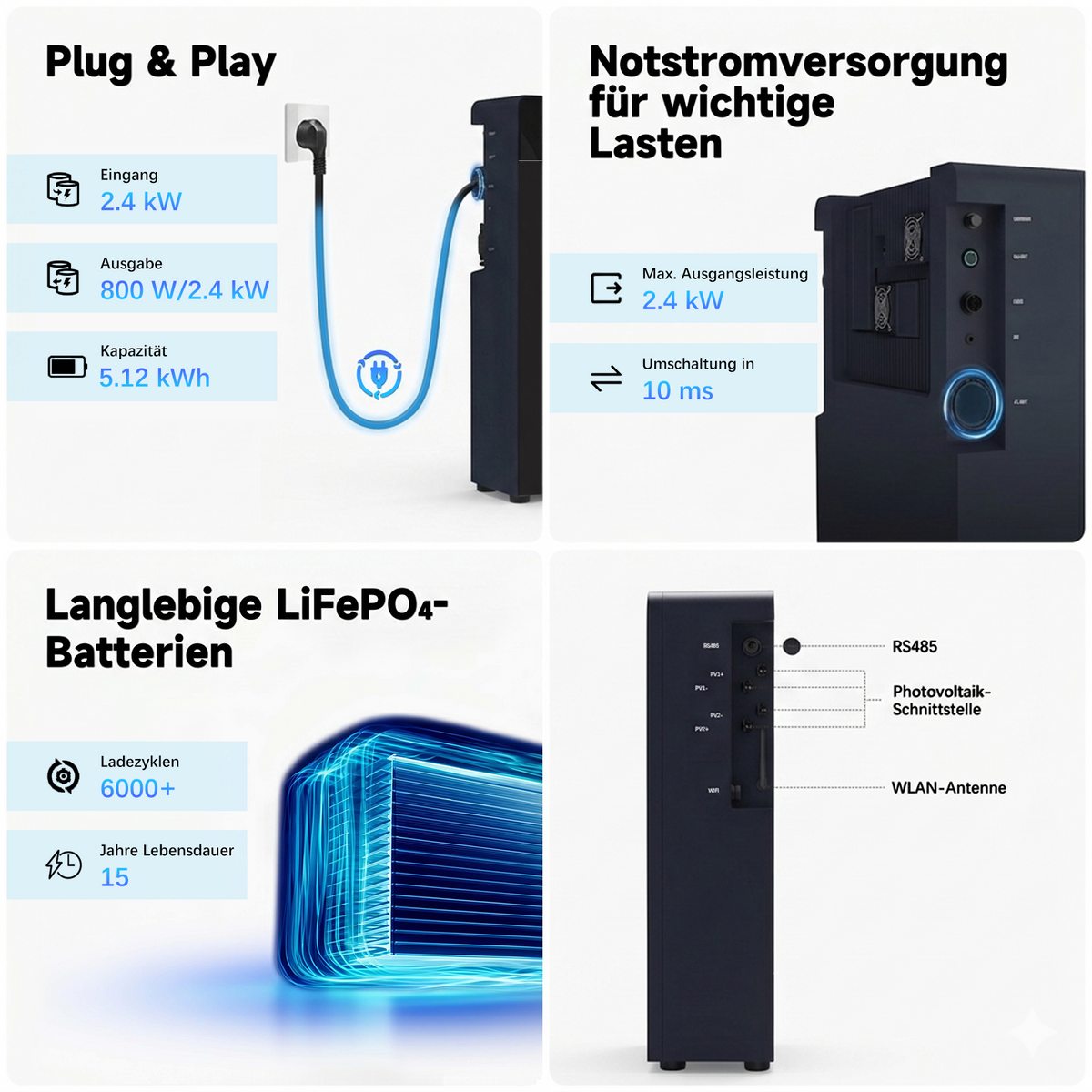

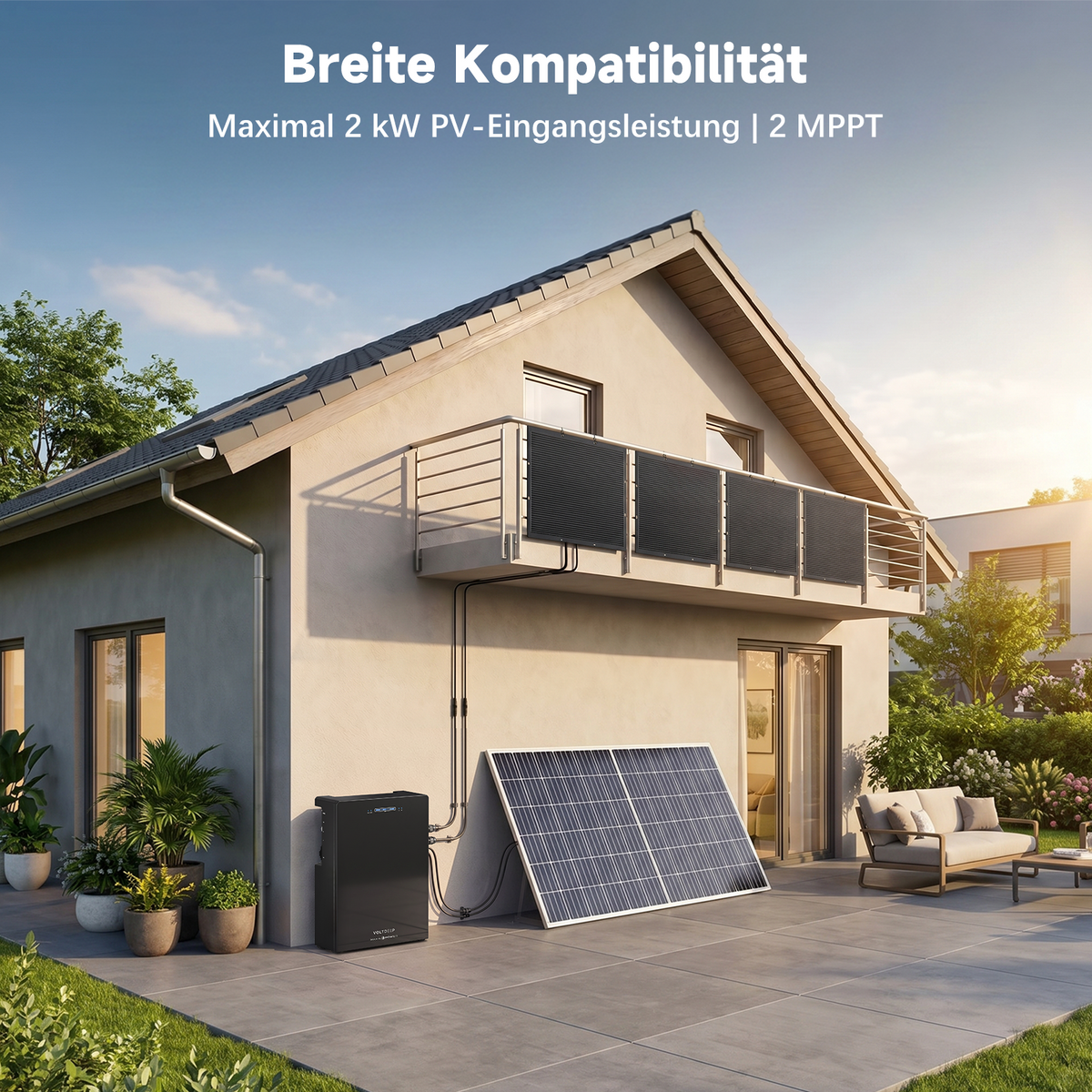

Max Photovoltaic (PV) Input	2000W Total (1000W x 2 channels, 2 MPPTs)
PV Operating Voltage Range	10V - 100Vdc (Max Current 16A x 2)
Grid-Connected AC Output	Default 800W (Max 2400W, 230V / 50Hz)
Off-Grid AC Power & UPS	2400W Output with <10ms UPS Switchover
Dimensions (L x W x H)	520 x 181 x 715 mm (20.4 x 7.1 x 28.1 in)
Weight	59 ± 2 kg (130 ± 4.4 lbs)

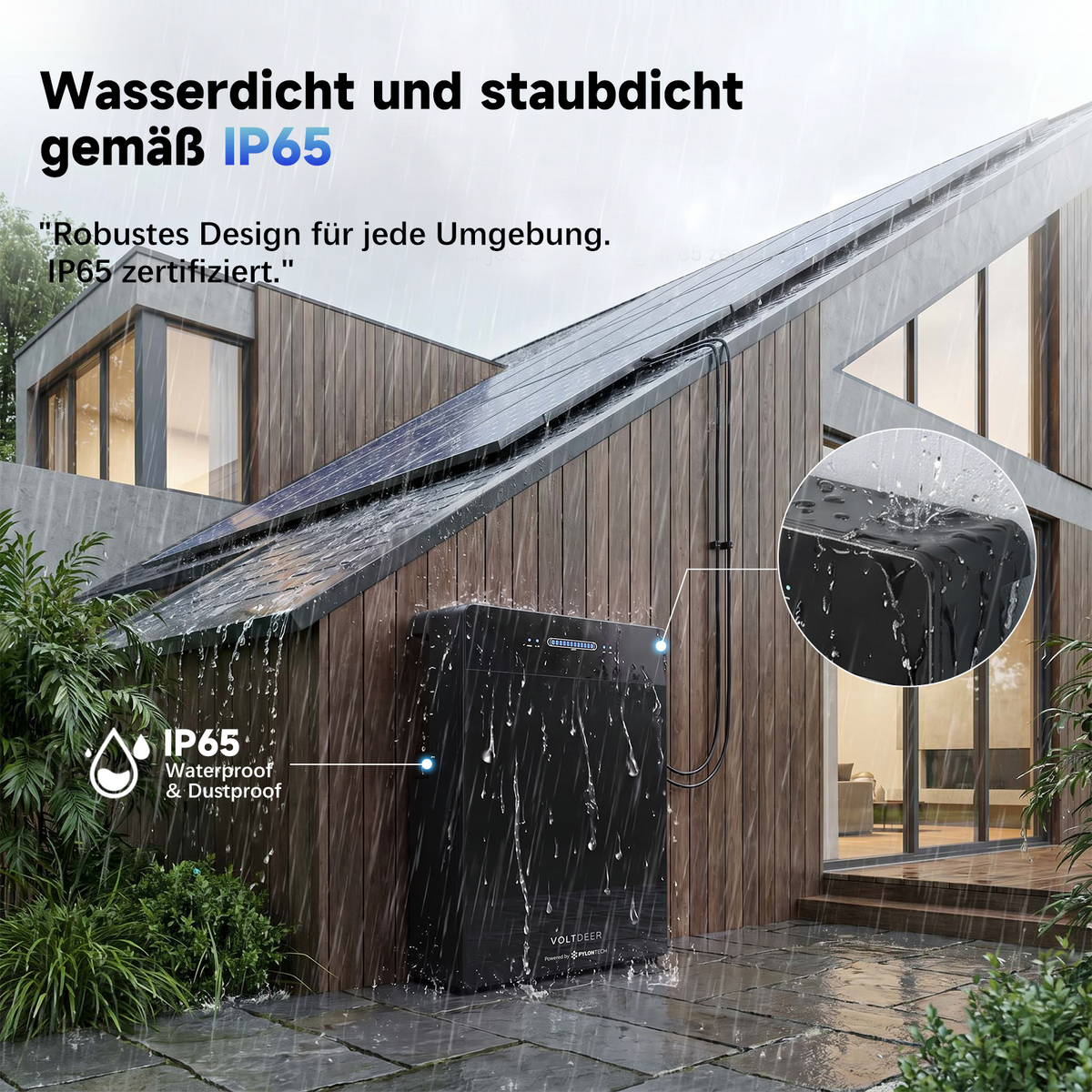

Protection Rating	IP65 Weatherproof

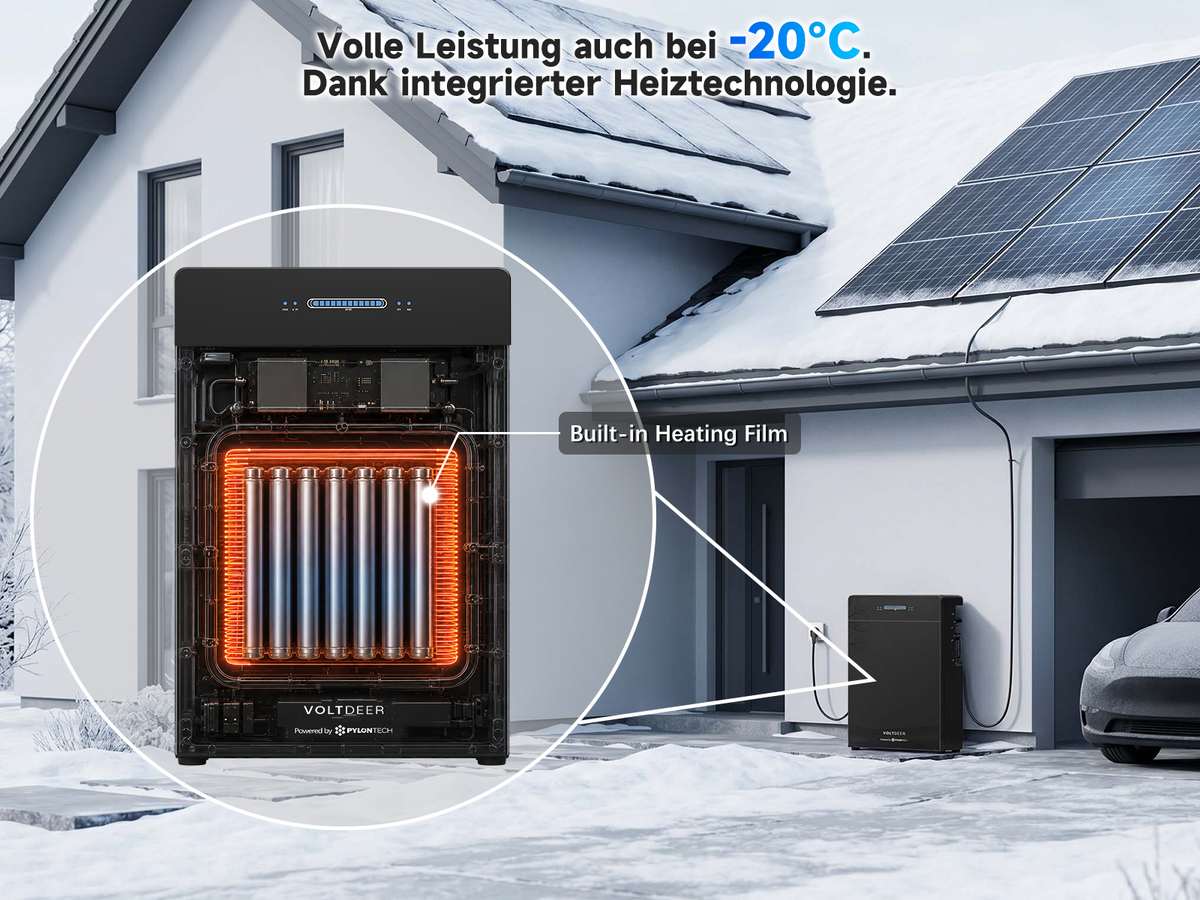

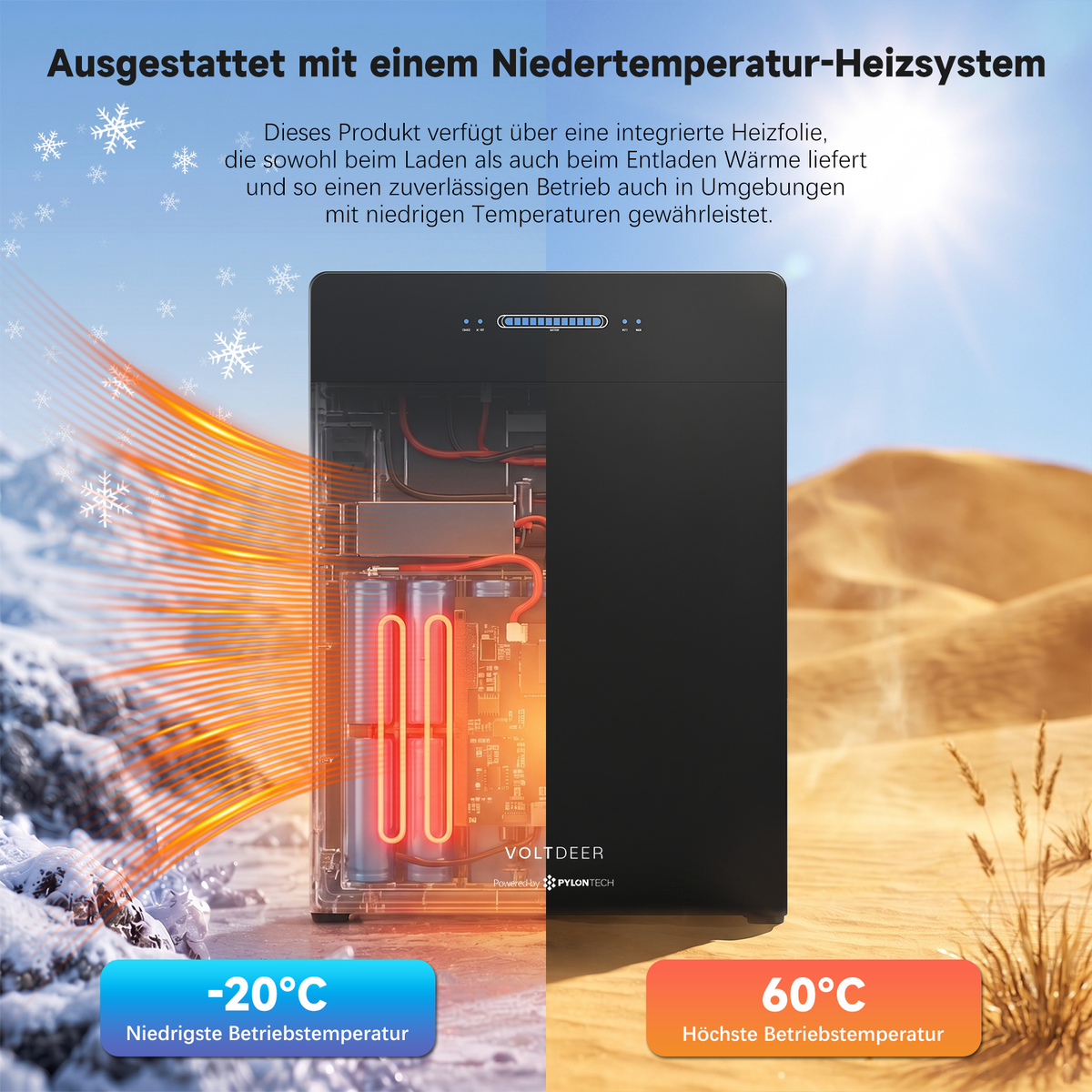

Operating Temperature	-20°C to 60°C (Integrated low-temp heating film)
Communication / App	Wi-Fi, Bluetooth, RS485, Voltdeer Smart App
Certifications	CB, CE-LVD/EMC/RED, RoHS, WEEE, EN 50549-1/10, VDE 4105, C10/11, CEI 0-21, UN38.3
